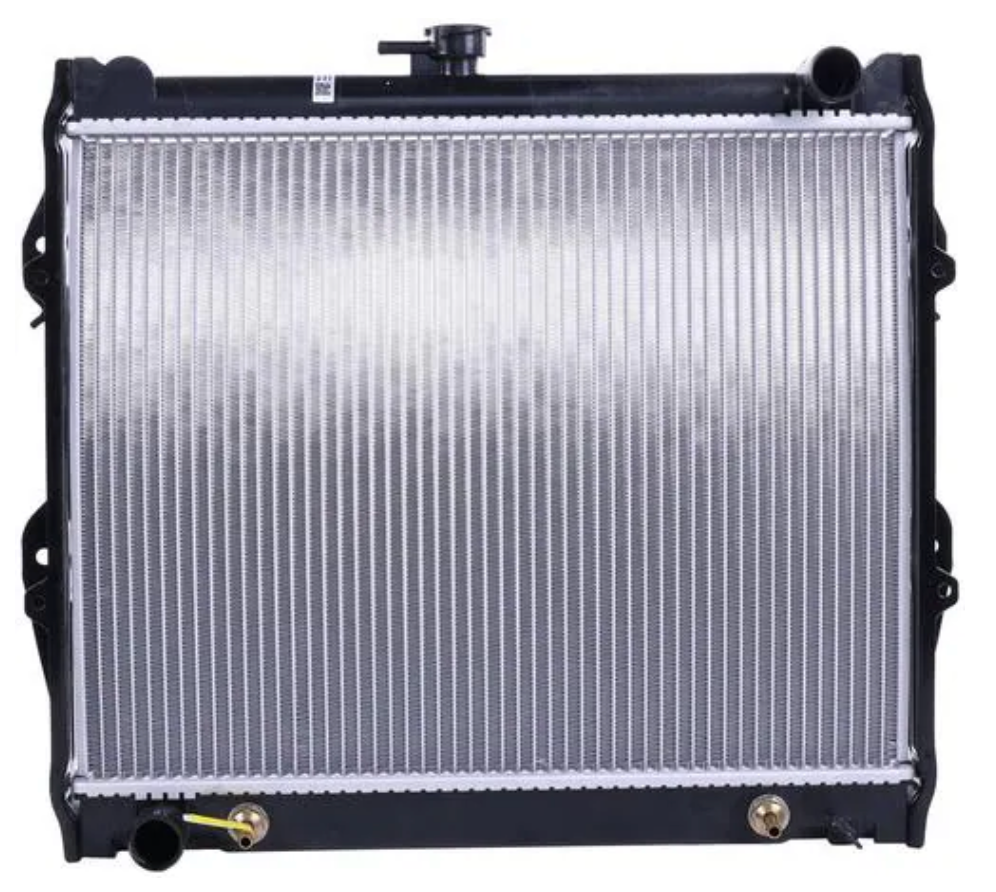

Murray "Short" Radiator 1986-1995

This radiator is required to clear our hidden winch mount

Murray part number: 433198

• Core Height (in): 15-13/16 Inch
• Core Width (in): 19-5/8 Inch
• Core Depth (in): 1 Inch
• Number Of Rows: 1
• Inlet Hose Diameter (in): 1-5/16 Inch
• Outlet Hose Diameter (in): 1-5/16 Inch
• Engine Oil Cooler Included: No
• Transmission Oil Cooler Included: Yes
• Cap Included: No
• Tank Material: Plastic
• Core Material: Aluminum
• Flow Type: Down Flow
• Transmission Oil Cooler Type: Concentric
• Inlet Location: Top Passenger Side
• Outlet Location: Bottom Driver Side
• Core Depth (mm): 26mm
• Core Height (mm): 401mm
• Core Width (mm): 498mm
• Inlet Hose Diameter (mm): 34mm
• Outlet Hose Diameter (mm): 34mm
